Mobiclip codec

The Mobiclip video encoding was developed by Actimagine (now NERD) for phones, PC and consoles (from GBA to Wii). This encoding has two variants with the only difference in the motion compensation table and the color space used.

The encoding is heavily based on H.264 and JPEG.

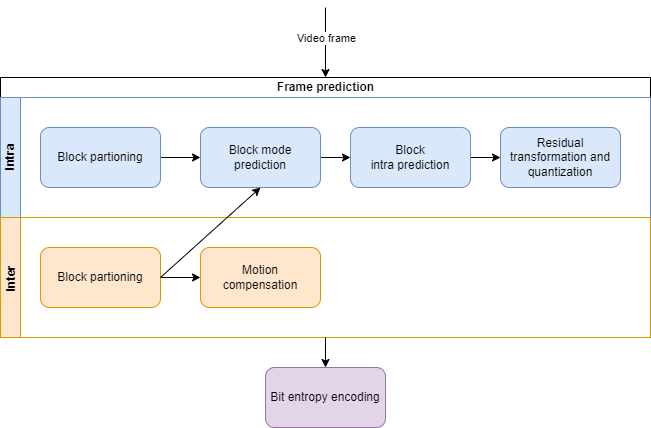

Components

As with H.264 the main building blocks are:

• Frame prediction
  • Intra: pixels predicted from neighbor pixel blocks
  • Inter: frame predicted by moving pixel blocks from previous frames
• Residual transformation and quantization
• Bit entropy encoding

Color space

The encoding uses the YUV color space with 4:2:0 down-sampling. Each key frame (I slice) has information about the actual YUV color space that it provides. P frames are derived from these, so they use the same color space. There are two possible values:

• 0: YCoCg: used in the first versions of the codec (MODS containers).
• 1: YCbCr: used in following versions of the codec (Moflex containers).

Frames

Just like H.264, each frame is divided in macroblocks of 16x16 pixels for the luma component and 8x8 pixels for the chroma U and V components. As it uses 4:2:0, it generates the same number of macroblocks for each component.

Following the terminology of H.264, a frame contains only one slide, meaning all the macroblocks of the frame are encoded together at once.

Prediction

There are two methods to encode a frame:

• I frame / Intra-frame prediction: each macroblock is encoded / predicted approximating the values of its neighbors. It does not require any other frame to get the output. This is also known as a key frame.
• P frame / Inter-frame prediction: each macroblock is predicted either using vectorized motion compensation or intra-frame prediction.

Intra-frame prediction

This encoding predicts the values of a block of pixels from its neighbors. The difference between the prediction and the actual frame pixel is named residual. This residual along with the prediction information (mode, has residual info and partitioning) is what we encode in binary. More information about the residual in transformation.

There are nine different prediction modes (0 to 8). They may happen on blocks of 16x16, 8x8 or 4x4 size. Note that a block of 16x16 only supports mode 2 (delta plane) and its residual is anyway encoded in 8x8 or 4x4 blocks.

• 0: vertical
• 1: horizontal
• 2: delta plane
• 3: DC / average
• 4: horizontal up
• 5: horizontal down
• 6: vertical right
• 7: diagonal down right
• 8: vertical left

Except for delta plane, the implementation of the rest is identical to the equivalent H.264 prediction mode. Delta plane is similar to the plane prediction mode but it can work with 4x4, 8x8 or 16x16 blocks and it reads an integer as a delta.

The encoder saves additional bits by predicting the mode value. If every sub-block of 4x4 or 8x8 in a macroblock uses the same prediction mode, this mode is only encoded once at the beginning. Otherwise the value for each block is also "predicted" in the same way as H.264 (see encoding intra prediction modes).

For each block we encoded also a value indicating whether it has residue data or not (all predicted values matches final image). Instead of encoding a bit per block, it encodes a variable-size integer used as an index in a pre-known table.

For 8x8 blocks, there is one value block at the macroblock level with 6-bits: 4-bits for each luma 8x8 block and 2-bits for each chroma component. There is another table for 4x4 blocks with 4-bits values (one for each block). These tables contains all possible values (0-63 for 8x8 and 0-15 for 4x4) and are sorted in a way where most-frequent values has a smaller index.

For each frame macroblock, first we have the information for its luma component, then chroma U and finally chroma V. Then it follows for the next frame macroblock.

Inter-frame prediction

Inter prediction is based on copying blocks of component values (luma and chroma) from previous decoded frames, up to 5 frames.

As with intra prediction, it works with macroblocks. For each of them the encoders provide a value with the operation mode. The possible values are:

• 0: motion compensation with predicted vector
• 1-5: motion compensation with delta vector
• 6: intra prediction with mode per macroblock
• 7: intra prediction with mode per sub-block
• 8: partition current block by height
• 9: partition current block by width

Modes 6 and 7 uses the same intra-prediction macroblock decoding as a regular intra-prediction frame. Modes 8 and 9 divide the current blocks by half in width or height and reads a new operation mode value for each of them. This is a recursive operation dividing blocks up to 2x4 or 4x2. All these operations applies for the three components (luma and chromas) at the same time.

Motion compensation works by copying a block of the same size of the component from a previous frame. The position in the previous frame may be different than the current block position. The different is named motion vector and it's encoded.

The algorithm predicts the vector value (X and Y deltas) by doing a median between the last vector used in the macroblock to the left, to the right and at the current position. For the first row some of these values may be zero, but starting the second there should be a value for each of them. If a macroblock was decoded with intra, then its vector is equal to zero (remember to update the cache).

Mode 0 uses this predicted vector while for modes 1 to 5 there are two exp-golomb integers indicating the delta X and Y values from the predicted vector. The modes also indicate the index to the previous frame buffer. Mode 1 would take the last decoded frame, mode 2 the second to last and so on. Mode 0 will also use the last decoded frame.

The vector's X and Y values are encoded in double, meaning we should divide by 2 to get the actual position difference. This may point to a half-pixel (half-pel) position. In that case the pixel is extrapolated from its neighbors.

Transformation

The difference between the predicted values and its actual value is transformed using the integer discrete cosine transform (DCT).

Quantization

The coefficients from the transformation are then quantized. Each value is divided by a constant, reducing the number of required bits to encode (saving space) but also losing image quality.

There is a parameter for each frame that determines the quantization table to use depending on the required target quality and space. More information here.

Bit entropy encoding

The bit entropy encoding for the residual is based on the JPEG standard instead of using CAVLC of H.264.

First it will create a list of integers from the coefficient matrix following a zig-zag order. Then it will encode these integers with a mix of Huffman and Run-Length encoding (RLE).

Starting at the beginning it encodes how many 0 integers there are until the next non-zero value, and this value. This is encoded in a 12-bits integer. These 12-bits are encoded with Huffman with pre-known trees. Each frame contains an index indicating what Huffman tree to use from two possibilities.

By setting the amplitude to zero the encoder can indicate that it needs further data to encode the run or amplitude. A following bit set to 0 indicates a bigger amplitude: it reads another block of 12-bits and adds to the new amplitude a value from a table using the run as an index. If the flag was 1, then another bit indicates if the same operation is done for the run instead. Otherwise, if these two bits are 1 and the amplitude was zero, it reads the information directly:

• end of block: 1 bit
• zeroes run: 6 bits
• amplitude: 12 bits

Binary serialization

The compressed frame data, like a structure, needs to be encoded into bytes. In this encoding, this is done at the bit level creating a bit stream with little endianness: first bit is the higher, at the left.

The format supports encoding the following types:

• Boolean: 1 bit. 0 for false, 1 for true.
• Fixed size integer
• Variable size integer: Exponential Golomb coding and its signed integer variant.

Exponential Golomb is identical to the Elias gamma code of x+1, allowing it to encode 0. [source: wikipedia]

Bits are written in blocks of 16-bits (in little endian). Meaning every time the reader needs more data to decode a number of bits it will read 16-bits in little endian order instead of a byte.

NAL

The encoder does not encapsulate the data in any format or packets (like it would be NAL in H.264). It's pure video codec layer (VCL). Frames are encoded directly and passed to the muxer which mix them with audio samples (see MODS containers).
